| Technical Data | |
| Design Standard | API6D, BS1868, DIN3356,EN10739 |
| Body Material | Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel.etc. |
| NACE MR-01-75/NACE MR-01-03 Special Requirements | |
| Pressures range | ANSI 150 ~ANSI 2500 ,PN10~PN420 |
| Size range | DN50(2") ~DN1200 (48") |
| Face to Face | ANSI B16.10,EN 558,DIN3202 |
| Flanged RF, FF, RTJ Ends | ASME B16.5 ≤ DN600 (24") ASME B16.47 A ≥ DN650 (26") |
| BS 4504,DIN 2543-2545,EN1092 | |
| Butt-Weld BW Ends | ASME B16.25 ,DIN 3239,BS 2080, EN 12627 |
| Temperature range | -29°~ 425°C |
| Design Feature | |
| Construction | Lift type, Swing type,Wafer type,Pressure seal bonnet,Bolted Bonnet |
| Disc Type | Dual plate, single plate, plug type |
| Seat Sealing | Integral body seat ,seat welded and overlaid |
| Fire Safe Design | API 607,BS 6755 |
| Inspection & Test | |
| Visual Inspection | MSS SP-55 |
| Material Inspection | PMI Test----Chemical Analysis |
| HB Test---Hardness Test | |
| UT---Ultrasonic Test | |
| RT---RadiographicTest | |
| MT---Magnetic Test | |
| NDT Test Non-destructive | |
| Dimention inspcetion | According to drawings |
| Valve Inspection and Test | API 598,DIN 3230,EN 12266,BS 5146 |
Design Standard: API, ANSI, DIN, JIS, BS, GOST, GB, etc;
Nominal diameter: 1/2'' - 24''(DN15-DN600);
Nominal pressure: Class150 - Class2500 (PN10-PN420);
Main material: WCB, WC6, LCB, LC1, C5, CF8, CF8M, CF3, CF3M, CF8C, CN7M, Hastelloy C, etc.
We also can cast and produce the valves according to customers' special requirements.

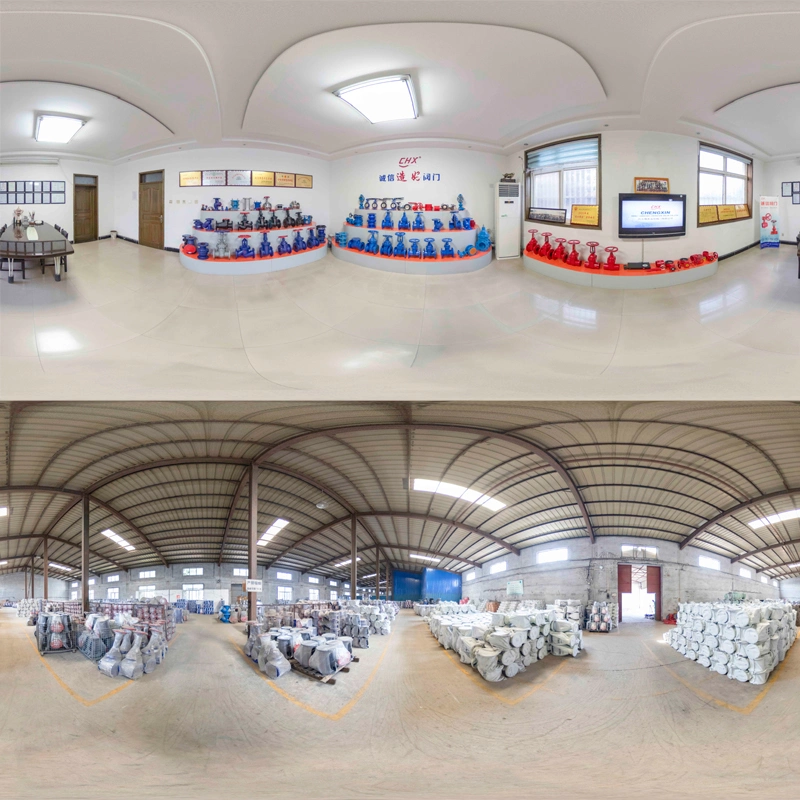

Company Information
FAQ
1. Is your company a distributor or a manufacturer?
A: Yes,We are a professional Valve manufacturer in China.
2. How about your products?
A : All our activities are accredited to ISO 9001:2008, both in products and services, at the same time, mature production technology ensuring the quality satisfy international request.
3.what is the Packaging & Delivery?
A:We used high quality export carton or standard export woodern case
4.what is the time about the delivery?
A: repared to deliver within 5-15days, if in stock.
Depends on order quantity, when out of stock, 25-30days
Transportation:By sea, air or land
5. Can you provide the sample for free?
A: Yes, we can provide the sample for free, but you need bear the delivery cost.
6. Can you produce according to customers' own technical drawings?
A: Yes, we always can fully meet customers' special requirement.
