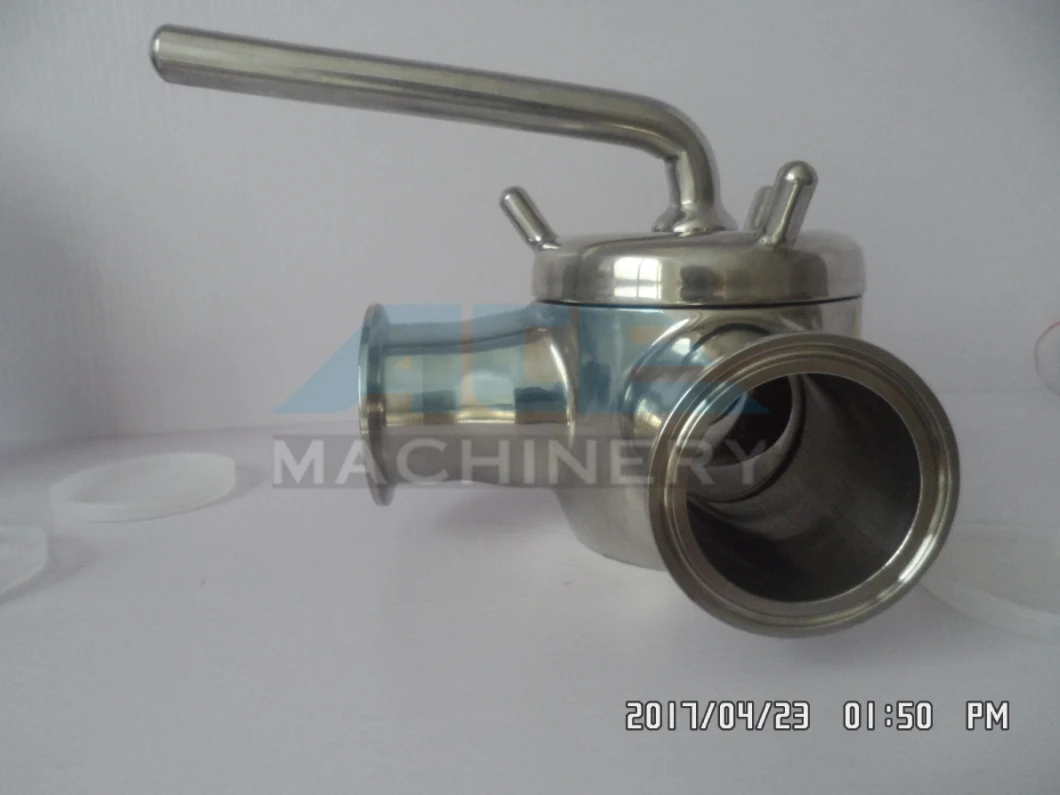

Hoting Sanitary SS304/316L 2 Way Dairy Plug Valve
1).Application:
Sanitary 3 way plug valve(American type)
2).Connection: Clamp. Weld. male and so on
3).Diameter Size: 1"-4"
4).Body Material: AISI 304, AISI 316L, AISI316
5).Body type: 2 ways and 3ways can be chosen.
6).Max pressure: 3bar.
7).Applicable Field: Milk industry
Please contact us if you need drawing or further information about products.
Plug cock valve are excellent hygienic design. Base on tape and not any gasket in flow port.
So, very populae use on the milk industry.
Sanitary 3 way plug valve(American type)
2).Connection: Clamp. Weld. male and so on
3).Diameter Size: 1"-4"
4).Body Material: AISI 304, AISI 316L, AISI316
5).Body type: 2 ways and 3ways can be chosen.
6).Max pressure: 3bar.
7).Applicable Field: Milk industry
Please contact us if you need drawing or further information about products.
Plug cock valve are excellent hygienic design. Base on tape and not any gasket in flow port.
So, very populae use on the milk industry.
Technical Datas | |||
Material of Stainless Steel | Ss304, Ss304L ,Ss316, Ss316L | ||
Inside Surfce Treatment | Polishing treatment | ||
The Roughness of the Surface | Ra≤0.4um | ||
Flux | 0.75m3/min,1.5m3/min,3m3/min | ||
Connction Ends | Tri clamped,Welded,Male threaded | ||
Standard | DIN,SMS,AAA,ISO | ||
Size | DN20-DN50,1"-2",25MM-51MM,Φ25-51 | ||
Pressure Range | 0-1MPa,0-10bar | ||
Temperature Range | -10 celsius degree-+150 celsius degree | ||
Certificate | ISO9001:2000,3A,SGS | ||
Detailed Image
Information of Filter Element | |||
Filter Precision | 0.10, 0.22, 0.45, 0.65, 1.0, 3.0, 5.0, 10.0(μ M) | ||
Strainer Element Material | (PTFE), (PP), (PES/PS), (PVDF), (Nylon N6, N66), (CN-CA) | ||
Filter Element Length | 5inch,10inch | ||
Strainer Element Amount | 1-14(strip) | ||
Packing & Delivery
Packing Details : Plywood or as per the request of customers | |||
Delivery Details : Shipped in 7-10 days after payment |
