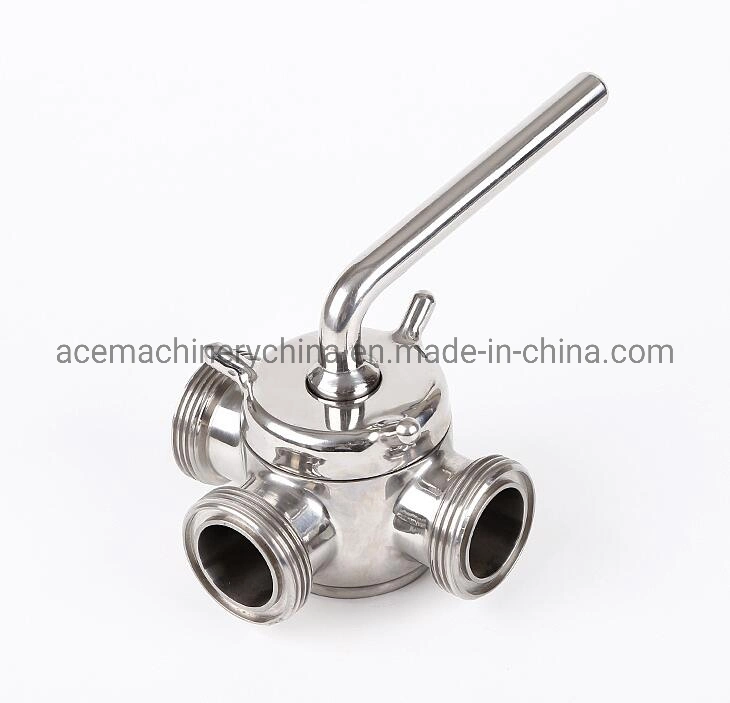

Stainless steel sanitary three-way plug valve with Rjt union

Stainless Steel Sanitary 3 Ways Plug Valve with Rjt Union  1).Application:  Sanitary 3 way plug valve(American type)  2).Connection: Clamp. Weld. male and so on  3).Diameter Size: 1"-4"  4).Body Material: AISI 304, AISI 316L, AISI316  5).Body type: 2 ways and 3ways

Featured Products

Stainless Steel Sanitary 3 Ways Plug Valve with Rjt Union

Stainless Steel Sanitary 3 Ways Plug Valve with Rjt Union
  1).Application:
  Sanitary 3 way plug valve(American type)
  2).Connection: Clamp. Weld. male and so on
  3).Diameter Size: 1"-4"
  4).Body Material: AISI 304, AISI 316L, AISI316
  5).Body type: 2 ways and 3ways can be chosen.
  6).Max pressure: 3bar.
  7).Applicable Field: Milk industry

Stainless Steel Sanitary 3 Ways Plug Valve with Rjt Union


  Please contact us if you need drawing or further information about products.
  Plug cock valve are excellent hygienic design. Base on tape and not any gasket in flow port.
  So, very populae use on the milk industry.





Technical Datas
Material of Stainless Steel
Ss304, Ss304L ,Ss316, Ss316L
Inside Surfce Treatment
Polishing treatment
The Roughness of the Surface
Ra≤0.4um
Flux
0.75m3/min,1.5m3/min,3m3/min
Connction Ends
Tri clamped,Welded,Male threaded
Standard
DIN,SMS,AAA,ISO
Size
DN20-DN50,1"-2",25MM-51MM,Φ25-51
Pressure Range
0-1MPa,0-10bar
Temperature Range
-10 celsius degree-+150 celsius degree
Certificate
ISO9001:2000,3A,SGS

Stainless Steel Sanitary 3 Ways Plug Valve with Rjt Union




Detailed Image



Information of Filter Element
Filter Precision
0.10, 0.22, 0.45, 0.65, 1.0, 3.0, 5.0, 10.0(μ M)
Strainer Element Material
(PTFE), (PP), (PES/PS), (PVDF), (Nylon N6, N66), (CN-CA)
Filter Element Length
5inch,10inch
Strainer Element Amount
1-14(strip)

Stainless Steel Sanitary 3 Ways Plug Valve with Rjt Union




Packing & Delivery


Packing Details : Plywood or as per the request of customers
Delivery Details : Shipped in 7-10 days after payment
